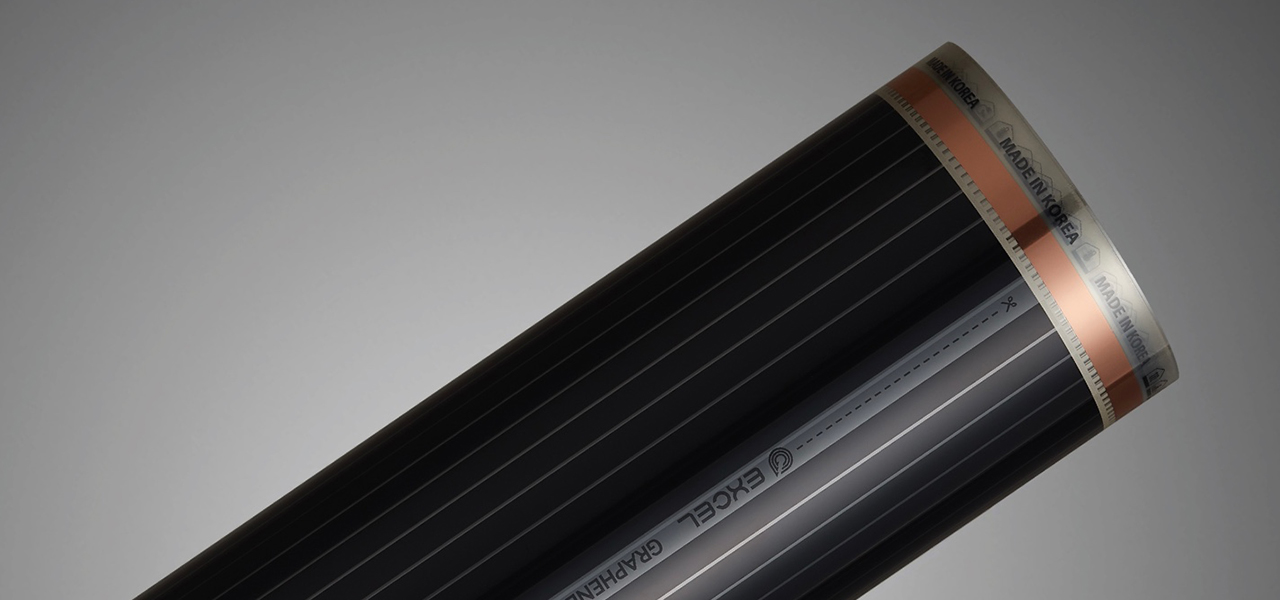

EXCEL™ HEATING FILM
EXCEL™ heating film sets a second to none standard in the heating film industry
FELIX's premium heating film EXCEL is a world-renowned brand that satisfies customers with quality, design, and price.
EXCEL film is made with selective PET brand materials, highest quality Carbon Paste, use of copper that is over CU99.92% pure,
and silver powder that is 99.99% pure with the latest technology facilities to produce the best product in Korea.
- For Customers
- It can be reborn as your own brand (OEM).
Voltage and power consumption can be adjusted to meet customer needs.
We produce various films such as Transparent Film, Milky Film, and DC Film
under the name of EXCEL Heating Film.
EXCEL™ is a high-quality heating film that realizes far-infrared heating system similar to
the traditional ‘Ondol’ rooms in Korea.
EXCEL™

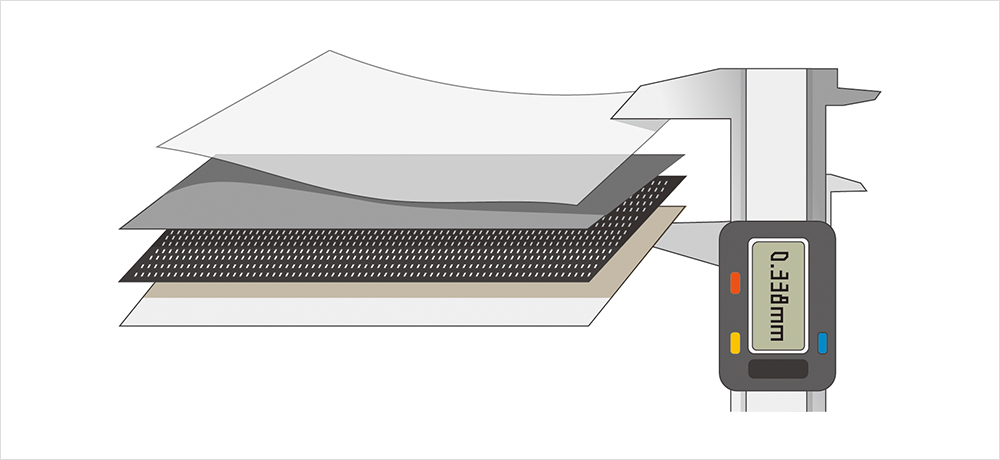

Heating film makeup
EXCEL™
Heating Film
Product specification
* Watt is the simple conversion of 220Watt/m2 to width. Watt can be changed upon customer request.
* The weight is based on the 0.338mm product. It may vary depending on the thickness and packaging.
* For high-temperature films, a width of 500 mm or less and 400 Watt/m2 are recommended.

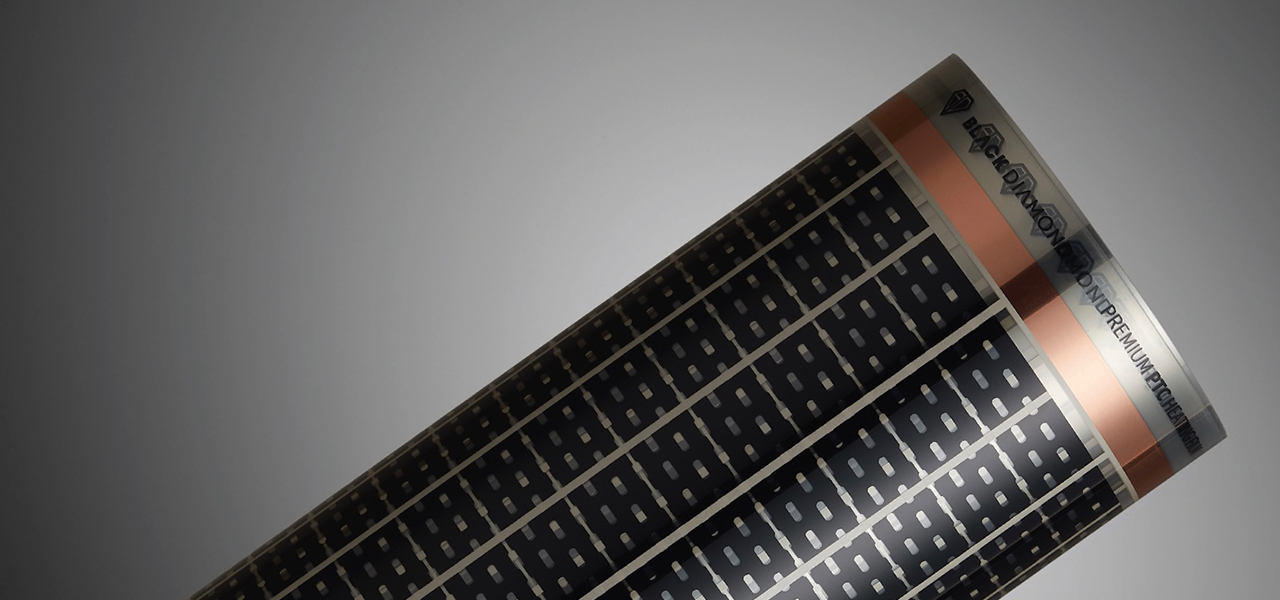

BLACK DIAMOND™ HEATING FILM
Premium PTC heating film, Feel the Next Level of safety and efficiencyFELIX's PTC heating film BLACK DIAMOND is a premium brand that further improves safety and energy efficiency by adding PTC function to its best-selling brand, EXCEL. By adding FELIX's premium PTC, which is an upgraded version of the existing general PTC function, FELIX is taking the lead in the era of smart heating that satisfies the world.
PTC stands for Positive Temperature Coefficient and refers to the characteristic of a heating element adjusting its own temperature.
When our premium PTC heating film BLACK DIAMOND reaches a high temperature, it automatically regulates the temperature to prevent overheating, providing a safer operating environment for users.
In addition, as the temperature goes up, power consumption decreases in inverse proportion,
making it a futuristic type of heating that also satisfies energy efficiency.
Maximum temperature change over time
This is a graph showing the temperature change of the heating film over operating time. Compared to normal heating film, FELIX's premium PTC heating film maintains a stable temperature below 80 ℃ even during long-term operation, providing a safer usage environment.
Power Reduction Ratio over temperature
This graph shows the power reduction ratio of the heating films over temperature. Compared to normal heating film, Felix's premium PTC heating film has a significant increase in power reduction as the temperature rises, making it a satisfactory product in terms of energy efficiency as well.
- For Customers
- It can be reborn as your own brand (OEM).
Voltage and power consumption can be adjusted to meet customer needs.
Experience safer and more efficient future smart heating
with FELIX's premium PTC heating film BLACK DIAMOND™.
BLACK
DIAMOND™
Heating Film Structure
BLACK
DIAMOND™
Heating Film
Product specification
* Standard Spec is 250Watt/m2. Watt can be changed upon customer request.
* BLACK DIAMOND™ Heating Film enhances safety by increasing PTC efficiency.

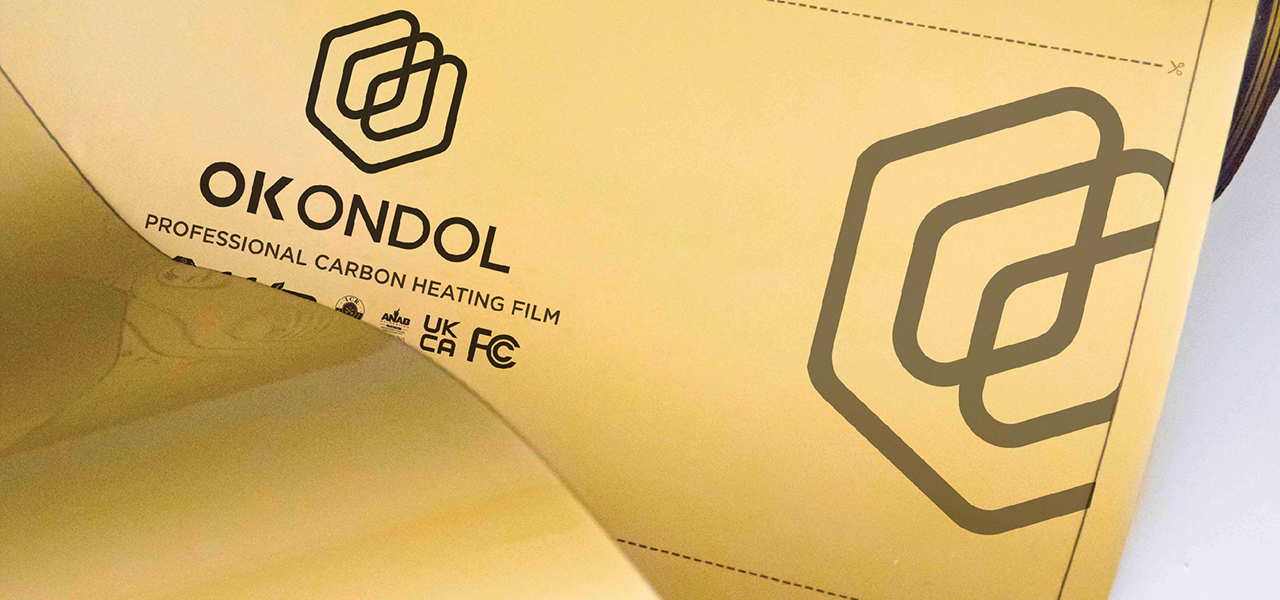

OK ONDOL™ Heating Film
Stronger, safer, and more OK ONDOL™ HEATING FILMFuturistic new concept heating film with differentiated design and structure OK ONDOL™ HEATING FILM
Stronger with a multi-insulated structure and protects against sparks by buffering the Copper foil with Silver Bus Bar.
OK ONDOL's pride is its unique design considering the carbon heating element's adhesive strength, precision printing technology,
and additional PET laminating for insulation reinforcement.
Planar heating element (Sheet type heating) produced with a thickness of 0.40 to 0.45mm.
- For Customers
- It can be reborn as your own brand (OEM).
Voltage and power consumption can be adjusted to meet customer needs.
Electricity supplied through the copper foil located on both edges generates pleasant heat of carbon and
far-infrared rays on the entire surface of the sheet.
OK ONDOL ™ is a high-quality heating film that realizes far-infrared heating similar to
the traditional ‘Ondol rooms’ in Korea.
OK ONDOL™
Heating film structure
OK ONDOL™
Heating Film
Product specification
* Watt is the simple conversion of 220Watt/m2 to width. Watt can be changed upon customer request.
* The weight is based on the 0.45mm product. It may vary depending on the thickness and packaging.
* For high-temperature films, a width of 500 mm or less and 400 Watt/m2 are recommended.
